In this section you will learn how to place railway tracks in your map using the Railtool. Placing tracks comes with several important considerations and requires basic familiarity with the Unreal Editor.

If you are not yet comfortable with Unreal Editor navigation and controls, please take some time to familiarize yourself before continuing.

The first step is to place the RailwaySubSystem master Blueprint into your level.

This Blueprint acts as the central configuration point for all railway-related systems and defines:

• Superstructures
• Data Layers
• Track behavior settings

To place it:

• Open the Content Drawer
• Navigate to SubwaySim2_Modding Content
• Locate the Blueprint BP_RailwaySubSystem
• Drag it into your level

Select the Blueprint in the World Outliner and set its position in the Details panel to: X = 0.000000 / Y = 0.000000

This ensures the subsystem is positioned correctly.

With BP_RailwaySubSystem selected, scroll down in the Details panel to the section Railway System 2.

This section contains all settings required before placing tracks.

The Data Layer Channels section defines which Data Layers the Railtool can use.

These include:

• Superstructure Data Layers
• Guide Rail Data Layers
• Third Rail Data Layers
• Custom Data Layers

You can:

• Add a channel using the + button
• Remove a channel using the Trash icon

Each channel consists of the following fields:

Once Guide Rails, Third Rails, and other infrastructure elements are configured in your Superstructure, the Data Layer Channels section will contain multiple entries.

This typically includes:

• A Superstructure Data Layer
• One or more Guide Rail Data Layers
• A Third Rail Data Layer
• Additional custom Data Layers

One commonly used custom Data Layer is Tunnel.

The Tunnel Data Layer is used to mark tunnel sections along the track. When applied, it ensures tunnel areas are treated correctly by the game, including proper lighting behavior.

Without this Data Layer, tunnel sections may appear incorrectly lit or not fully dark during gameplay.

In this section, you add all Superstructure Data Assets that should be available for track creation.

These assets define:

• Rail geometry
• Sleeper meshes
• Ballast
• Clamps
• Guide Rail and Third Rail behavior

Make sure all required Superstructures are added here before placing tracks.

Superelevation describes the banking of tracks in curves to compensate for centrifugal forces.

The Railtool supports automatic superelevation using the following parameters:

These default values are suitable for most cases and can be adjusted depending on track design and realism requirements.

After setting up the RailwaySubSystem correctly, we can begin placing tracks.

Open the Mode Selection in the Unreal Editor and switch to Simuverse Rail Mode.

⚠️ Important: Tracks can ONLY be created, edited, or removed in Simuverse Rail Mode. Do not delete track meshes in Selection Mode, as this can cause severe rendering and logic issues within the Railtool.

When entering Simuverse Rail Mode, a tool panel appears on the left side of the editor.

This section controls how Data Layers are handled on tracks.

• Convert to Directional

Converts existing Data Layers into directional layers, allowing different values depending on track direction.

Defines the active editing mode. You can switch between the following modes using the dropdown menu:

• Track Control

Used for creating, connecting, and editing track control points.

• Height Control

Used to adjust vertical alignment and elevation of tracks.

• Data Layer

Used to assign or modify Data Layer values along track segments.

Debugging tools to visualize and inspect track behavior.

• Display Rail Intersections

Displays intersections and connection points between tracks.

• Switch Switches to Current Track

Forces switches to align with the currently selected track.

General configuration values for track placement.

• Ground Offset Meters

Defines the vertical offset of tracks above the ground.

  Default value: **0.5 meters**

Tools for cleaning up and repairing track data.

• Cleanup Invalid Controlpoints and Segments

Removes invalid or corrupted control points and track segments from the map.

Camera helper functions for navigating complex track layouts.

• Focus Control Point

Moves the editor camera to the control point specified by ID.

• Focus Control Point ID

The control point number used for focusing the camera.

Advanced diagnostic and maintenance tools.

• Check Track System

Scans the entire track system for errors or inconsistencies.

• Refresh and Check Imported Switches

Validates imported switches and refreshes their data.

• Refresh Transition Curve Length

Recalculates transition curve length for smooth geometry and correct superelevation behavior.

• Re-Register Console Commands

Re-registers Railtool-related console commands in case they were lost.

• Check Track Step Size CM

Validates the internal step size (cm) used for mesh generation.

Tools for creating parallel tracks.

• Create Parallel Track

Creates a new track parallel to the selected one.

• Parallel Offset Meters

Defines the distance between selected and parallel track.

• Create Parallel Tracks

If enabled, track meshes are generated immediately.

  If disabled, only control points are created.

Core tools for managing track geometry.

• Create Intersection

Creates a connecting control point between two existing control points.

• Destroy Track Meshes

Removes all generated track meshes from the map.

• Disconnect Selected Control Points

Breaks the connection between selected control points.

• Force Reset All Track Meshes

Resets all track meshes to their default state.

• Generate Track Meshes

Regenerates all track meshes on the map.

• Linearize Control Points

Aligns the middle point (of three) into a straight line.

• Mark Close Segments

Highlights segments that are placed too close to each other.

At this point, the Rail Mode interface should be fully understood, and you are ready to begin placing and shaping track geometry.

Before we start placing tracks, it is important to understand how track placement works in SubwaySim 2.

Unlike classic spline-based tools, the Railtool uses Control Points.

Control Points describe:

• Track direction
• Curve radius
• Transition behavior
• Connections between track segments

Example: an S-curve can be defined using only four Control Points:

• Entry direction
• First curve transition
• Second curve transition
• Exit direction

This mirrors real-world railway alignment planning and ensures:

• Smooth geometry
• Predictable curvature
• Proper superelevation handling

(See the attached diagram.)

• Fewer points for complex track shapes
• Cleaner and more readable layouts
• More realistic curves and transitions
• Easier maintenance and modification
• Better compatibility with switches and intersections

Now we can begin creating our first track.

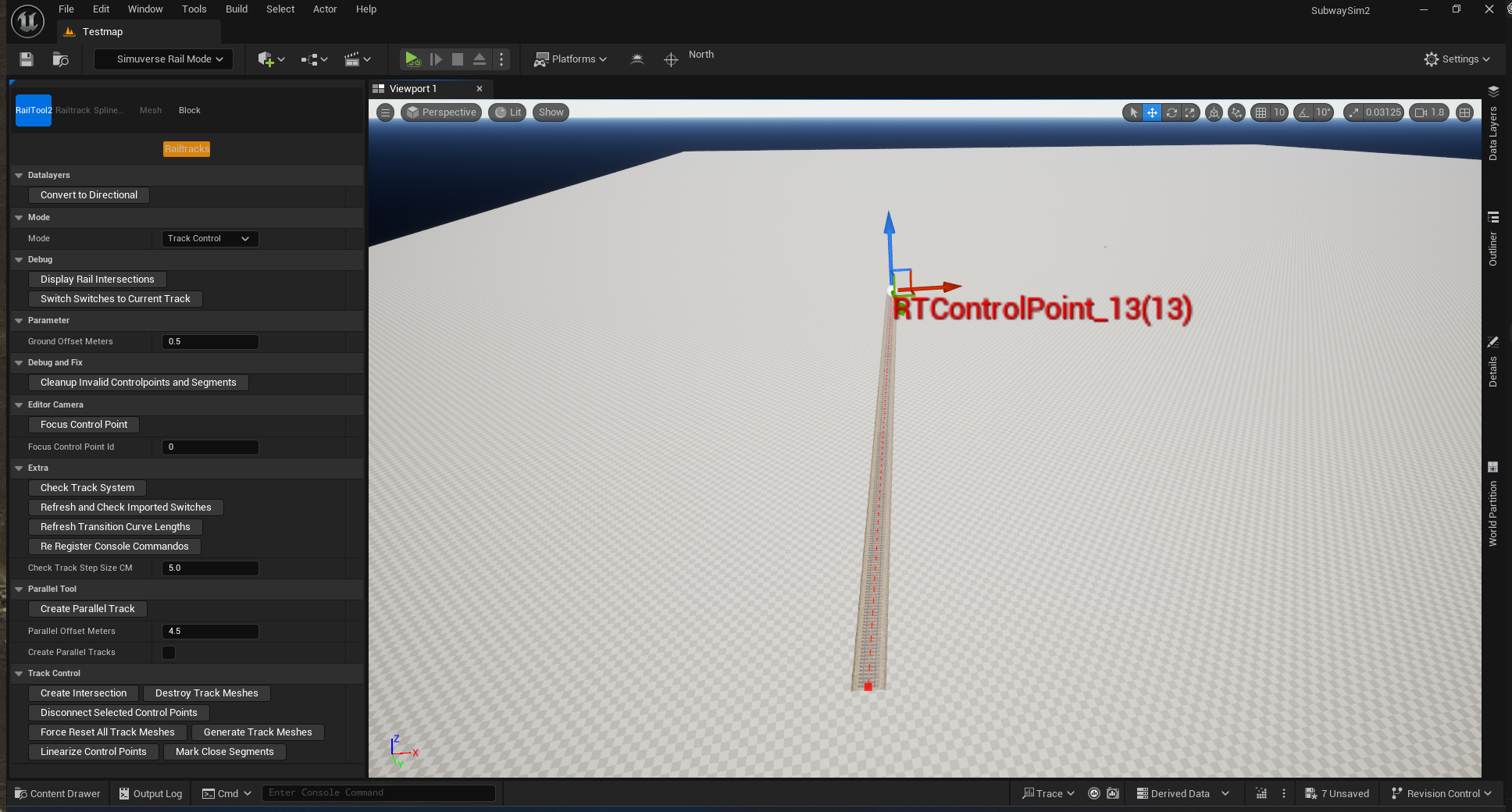

To create a Control Point:

• Hold CTRL
• Left-click on the Landscape

Repeat at another position:

• Hold CTRL
• Left-click at a different location

A straight track segment will be generated between the points.

Recreate the layout shown in the diagram by placing Control Points for:

• Straights
• Curves
• Smooth transitions

Your track should look similar to the example below:

To shape curves:

• Select a Control Point
• Open the Details panel

If Control Points are hard to select:

• Move the camera around
• Click from a different angle
• Zoom in closer

When selecting a Control Point, the Details panel exposes parameters for curve behavior, transitions, and superelevation.

Understanding these parameters enables precise control over track geometry and realistic results.

In this section we will create our first switch.

Create a straight track using two Control Points. Then:

• Select the required Control Points using SHIFT + Left Click.

In this example, two Control Points are selected, but any number of Control Points can be used if multiple parallel connections are needed.

• Enable the Parallel Tool
• Click Create Parallel Track

A second, parallel track is created.

For precise duplication and movement:

• Set the gizmo coordinate system to Local
• Align it to the track axis

• Press M to cycle gizmo rotation modes
• Align the gizmo with the track direction

For the first track:

• Select a Control Point
• Hold ALT
• Drag it along the track direction

Repeat on the parallel track and offset slightly to create the diverging branch.

• Select one Control Point
• Hold CTRL
• Left-click the other Control Point

The Railtool generates a switch between the two tracks.

You can refine a switch by:

• Moving Control Points
• Changing curve radius
• Adjusting switch motor type
• Adjusting motor placement

The Railtool displays the frog type in red text and in the Control Point Details panel.

The Railtool also supports vertical geometry using Height Control Points.

• Open the Mode dropdown
• Select Height Control
• Hold CTRL
• Left-click directly on the track

Select a Height Control Point and adjust:

The Railtool calculates:

• Gradients between points
• Smooth vertical transitions

• Height Control Points affect only vertical alignment
• Horizontal geometry remains unchanged
• Avoid placing points too close together

Data Layers define additional track properties such as:

• Third Rail
• Guide Rails
• Tunnel markers
• Speed limits

To work with Data Layers:

• Open the Mode dropdown
• Select Data Layers

• Hover over a segment (highlighted orange)
• Left-click to set a start point
• Move along the track
• Left-click again to set the end point

• Open Add Channel
• Select ThirdRail
• Choose placement: None / Left / Right / Both
• Select Left

Optional:

• Open Visualize Channel
• Select Third Rail

• Select a track section
• Open Add Channel
• Set value to None or Clear

With this, the basic principles of track placement have been explained.

Creating clean and realistic railway layouts requires practice. We recommend studying the tracks used in the SampleModMap to learn proper Control Point placement, curve design, and Data Layer usage.

This page explains how imported rail switches are used in SubwaySim 2 and how custom switches are designed, built, rigged, animated, and integrated into the game.

Imported switches are required whenever the Railtool cannot reliably generate a specific switch geometry or when a switch is a special construction (e.g. DKW / EKW / DW).

The Railtool supports:

• straight tracks
• curves
• standard single switches
• crossings without moving parts

However, some switch types are:

• geometrically very complex
• highly variable between real-world construction standards
• not safely generatable by procedural tools

In these cases, switches must be:

• modeled manually in a 3D application (e.g. Blender)
• imported into SubwaySim 2 as custom assets
• connected to tracks via Control Points like any Railtool switch

The Modding SDK already includes a variety of imported switches.

They are located in:

SubwaySim2_Modding / RailwaySystem / ImportedSwitches

These switches are used in the base game and serve as:

• production-ready assets
• technical reference for correct setup
• examples for naming, paths, animations, and Blueprints

To place an imported switch:

• Make sure the Unreal Editor is in Selection Mode
• Drag one of the BP_… switch Blueprints into the level

⚠️ Only use the BP_… Blueprints. Do not place raw meshes directly.

After placement:

• the switch can be freely moved and rotated
• align it according to your track design

Once positioned:

• open the Railtool and connect the switch to the surrounding tracks via Control Points

See:

• Laying Tracks

We generally build everything in the 60E1 rail profile.

This ensures:

• correct wheel / rail interaction
• consistent visuals
• compatibility with existing base game assets

The blade rail is the moving rail part of a switch. The stock rail is the non-moving rail part that the blade rests against.

Important characteristics:

• the blade starts very thin and becomes thicker until it matches the normal rail profile
• the stock rail also changes profile near the blade contact area
• the blade sits higher than the standard rail while keeping the same track gauge
• shortly after the thick section, both transition back into the standard profile

The frog is where rails interconnect and split. This is often the most complicated part of the switch.

Depending on switch type, frogs can exist as:

• single frog
• double frog
• triple frog

Frog geometry must ensure:

• flangeway clearance
• correct wheel guidance
• no wheel drops and no clipping

The throw bar and switch motor are what move the blades.

• the throw bar grabs the blade
• the motor pulls or pushes the throw bar
• blades do not move at the same time — one starts moving slightly before the other

Alternative:

• manual switch levers can be used instead of motors

Guard and guide rails prevent the wheelsets from taking the wrong route through the frog area and help guide the wheels safely through the crossing.

Switches require special clamps:

• blade clamps
• guard clamps
• special clamps where space is limited

Clamps are usually the most tedious part of the whole workflow.

A crossing has no moving parts. Crossings can be generated by the Railtool and require no custom building.

A normal single switch can be generated by the Railtool and does not require custom building.

DW is like two switches placed so close together that they intersect. These currently must be custom built and cannot be reliably generated by the Railtool.

EKW is like a crossing but includes switch blades so trains can move from one track to another. These must be custom built.

DKW is like an EKW but allows trains to move freely between the connected tracks. DKWs must be custom built and are generally more complex.

There are two DKW blade layout variants:

• blades outside the two frogs
• blades inside the frogs

Outside-blade variants:

• more complicated to build
• allow higher speed through the switch

In this example we build a DW in:

• 60E1 profile
• radius 100
• angle 6:1
• first left, then right

Naming:

DW-60E1-100-6:1LR

Some software does not support `:` and may write it as:

1_6 instead of 1:6

We build this inside the prepared `60E1-Rail.blend` file which includes prebuilt meshes and a folder structure. Always follow the existing folder structure:

• create a new Collection
• keep naming consistent

First create the switch angle reference (example 6:1):

• place a vertex at world origin
• extrude 6 m along X
• extrude 1 m along Y
• fill the triangle

The long edge (~6.08 m) is referenced as “c” in later steps.

Next create a 100° circle:

• align it so the bottom vertex sits at the origin
• use a high vertex count divisible by 4
• target ~0.6 m edge length (example: 1024 verts)

Delete unnecessary vertices.

Now:

• extrude the edge “c” forward
• move the circle along X until it becomes tangent to edge “c”

Alignment methods:

• manual positioning (not recommended)
• use snapping:
  1. set active element
  2. select a vertex
  3. select all vertices
  4. snap to edge “c”
  5. if intersecting, choose a different reference vertex

Now you have one curve (left). For the right curve:

• copy the first curve
• move along X so its start sits in world origin
• rotate by 180° or mirror along X

Add straight edges, convert to curves.

Paths:

• duplicate the curves
• convert duplicates to meshes
• trim them slightly
• ensure all start at the same point
• extrude edges 0.1 m up for visibility

⚠️ Path requirement:

• wherever paths intersect, they must have the exact same vertices

Naming:

• PathLeft
• PathRight
• PathStraight

These paths will later define train routing in the imported switch Blueprint.

Rails:

• duplicate `60E1Double`
• add Array modifier (merge enabled)
• add Curve modifier using one of the curves
• repeat for all rails

Flangeway distance mesh:

• duplicate the `Abstand` mesh
• apply same array + curve setup

Sleepers:

• use an existing sleeper mesh (commonly `WoodenSleeper2.6`)
• ensure sleeper spacing ~0.6 m
• apply curve modifier along the rails

After merging and length adjustments, the base rail bed should be complete.

At first rails will intersect incorrectly. We must cut out the intersecting rail / flangeway areas.

Workflow:

• cut away collision parts where flangeway and rail intersect
• extend rail ends to the correct intersection points
• model the frog using reference material
• add frog wings
• check wheel clearance

Note:

• frogs can look weird in Blender; what matters is correct geometry and clearance

Initially, blades are just normal rails. They must be reshaped.

Blade workflow:

• use `BladeRailDouble`
• apply curve modifier on the required curve
• enable deformation alignment in Curve modifier for easier positioning
• ensure thick part sits close to center (rotate 180° on Z if needed)

Then:

• duplicate middle segment
• move middle + thin end to where the blade begins intersecting the stock rail
• move thin end to the blade tip
• delete wrong blade faces where necessary

Segment stitching:

• select each segment
• bridge edges (linear)
• add enough cuts so segments are about 0.6 m each
• delete unnecessary faces
• sharpen thin end edges
• apply curve modifier

Stock rail workflow:

• duplicate `StockRailDouble`
• apply curve modifier
• repeat on corresponding rail

Repeat this process for all blades / stock rails for the entire switch.

Guard rails:

• duplicate `GuardRailDouble`
• apply curve modifier where needed
• position correctly near frogs
• trim if necessary

If a guard rail does not fit:

• add a guide rail (metal piece)
• use existing switches as reference for shape and placement

Hollow sleepers:

• use existing `HollowSleeper`
• place at the blade end between two sleepers
• ensure the steel tub does not intersect rails or clamps

Throw bars:

• place `ThrowBar` and `ThrowBarNuts` at the same blade end position
• align to blade ends
• ensure no intersections when blades move

Clamps are the most time-consuming part.

Preparation:

• add an edge loop length-wise through every sleeper (temporary helper)
• add edge loops length-wise through all rails (except blades)

Placement:

• take `RailClamp`
• snap it to:
  1. middle of sleeper
  2. middle of rail
• duplicate along X by 0.6 m (sleeper distance)
• use Shift+R to repeat last action until clamps cover entire length

Important:

• do NOT use instances
• do NOT use array modifiers for clamps

Reason:

• clamps require individual pivot rotation and per-clamp adjustments

After base placement:

• move clamps along the curve alignment
• duplicate until all rails on all sleepers have clamps (except blades)

Special clamp types:

• blades: use `ClampK_BladeBUILD` on the corresponding stock rail
• guards: use `ClampK_GuardBUILD` on the corresponding guard rail

Rotation:

• rotate each clamp individually to match the rail direction it is attached to

Special cases:

• if clamps clip each other:
  1. separate them
  2. build a custom “special clamp” mesh

Performance approaches:

Approach A (Correct / Optimized)

• separate special clamps and unique clamps
• add sockets to remaining clamps
• record which clamps are single or double
• place clamps via instanced meshes in engine
• efficient but time consuming

Approach B (Simple / “Good Enough”)

• export clamps as separate StaticMesh
• apply a strong LOD chain to reduce performance impact
• faster and often acceptable for mod maps

Gravel workflow:

• pick a gravel base mesh (e.g. GravelOEBB or GravelSubway)
• apply curve modifier (usually 3 times for all tracks)
• apply modifiers
• merge together to avoid overlapping and Z-fighting
• ensure ends match next rail segment seamlessly

UV requirement:

• texel density must match standard gravel meshes
• select a top face and read texel density
• view from top, project from view
• apply same texel density to the full gravel mesh

Switch UVs are based on a tileable trim sheet (RailTileSet).

Workflow:

• select all shiny metal parts
• cube project
• set texel density: 5.12 px/cm on a 1k texture
• move UV islands to the shiny trim region
• repeat for rusty trim region
• repeat for wood / concrete sleepers

This section is mandatory for any imported switch that includes moving blades.

We rig the switch with an Armature.

Step 1: Root bone

• create the root bone
• name it: `Rail`

Step 2: Vertex Groups for static parts All meshes that are not part of the moving blades should receive a vertex group named `Rail`.

Typical static meshes:

• rails (except blade meshes)
• frogs
• guards / guide rails
• sleepers
• clamps
• gravel
• any fixed hardware

Workflow:

• select static meshes
• merge temporarily if helpful
• select faces
• CTRL+G → assign to vertex group `Rail`

Step 3: Blade bones (4 bones per blade) For each blade:

• place a bone starting at the thick blade base
• move the end to the thin blade end
• subdivide the bone twice
• result: 4 bones per blade

Important:

• bones should follow blade curvature
• bones must sit centered in the blade geometry

Bone naming convention:

Blade<FromTo>_<L/R><Index>

Examples:

• BladeLR_L1
• BladeLR_L2
• BladeLR_L3
• BladeLR_L4
• BladeRL_R1
• BladeRL_R2
• …

Meaning:

• LR = blade direction: Left → Right route
• L/R = left or right blade in the switch
• Index starts at the thick end

Step 4: Throw bars Throw bars should receive vertex groups matching the blade they are attached to. Naming:

• same blade naming
• use the final blade bone index

Example:

• if the throw bar belongs to BladeLR_L4 → vertex group should match that

Step 5: Skinning / Parenting Blades are skinned to the armature:

• parent with automatic weights

Then verify manually:

• pose mode
• rotate bones slightly
• confirm weights behave correctly on all blade segments

For a DW example, the switch gets two animations:

• `BladeSwitch1` (first blade pair: SW1)
• `BladeSwitch2` (second blade pair: SW2)

Animation principle:

• blades do not move simultaneously
• one blade starts slightly earlier than the other
• ensure flangeway clearance at all times

Example workflow for `BladeSwitch1`:

• show flangeway meshes for clearance check
• frame 20:
  1. key SW1 L1 + L2 bones
• frame 1:
  1. key SW1 R1 + R2 bones
  2. rotate inward:

R1 by 1°

    R2 by 0.5°
* frame 80:
  - set R1 + R2 to 0 and key again
* frame 100:
  - rotate inward:
    L1 by 1°
    L2 by 0.5°
  - key again

Graph editor:

• set curves to linear for consistent motion

Name the action:

• BladeSwitch1

Make sure the animation is an NLA strip.

Repeat the same idea for `BladeSwitch2`.

Notes:

• your angles may differ from 1° / 0.5°
• the goal is:
  1. no clipping in flangeway
  2. throw bars not intersecting hollow sleeper
  3. blades settle cleanly into stock rails

Use the same export settings as for vehicles:

• SkeletalMesh export for the animated switch
• Animation export for blade animations
• StaticMesh export for static components (if separated)
• Paths export as meshes

Folder structure and naming must match the SDK convention.

SkeletalMesh + Animations:

• import like a vehicle asset
• animations into an Animations folder

StaticMeshes:

• import normally

Paths:

• can be imported from a single FBX file
• disable “Combine Meshes”
• ensure mesh names remain meaningful

Create a new Animation Blueprint:

• place it alongside other switch ABPs
• follow naming convention
• set Parent Class to: Lua Anim Instance

Workflow:

• copy a working switch ABP as baseline
• create variables for SW1 and SW2
• assign the correct Anim Sequences
• in “Layered Blend per Bone”:
  1. update bone names to match your blade bones
  2. verify order: SW1 in first array, SW2 in second

Common issue:

• one wrong bone name breaks the entire blend setup

Always triple-check:

• typos
• correct L/R
• correct index order

Create a Blueprint based on:

• *RTImportedSwitchActor Add: * SkeletalMesh component * StaticMeshes (sleepers, gravel, clamps) if separated * assign the Animation Blueprint Under RailTool2: * add SwitchConfigurations Each SwitchConfiguration defines: * which Path is used * which animation state is applied Example logic: * if route goes left: - use PathLeft - set SW1 AnimationState to 1 (end pose) * if route goes right: - use PathRight - set SW1 to 0 - set SW2 to 2 You can cycle through configurations in the BP: 0 = first configuration, 1 = second, etc. If nothing changes visually: * check ABP setup first (bone names, variables, animation assignment) Optional features (common in base game switches): * gravel visibility toggle in Construction Script * sleeper material variant toggle (wood vs concrete) * switch motor placement via enum motor positions Switch motors: * determine motor locations in Blender * copy relative location + rotation into Blueprint * reuse existing motor placement logic from SDK BPs where possible —- ===== Extra Info ===== ==== Calculating the Angle (Example 1:6) ==== 1/6 = 0.1666… atan(0.1666…) = 9.462322208… Rounded to 4 decimals: 9.4623° —- ===== Next Step ===== With the track layout completed, including curves, switches, height profiles, and Data Layers, your map’s railway infrastructure is now in place. The next step is to prepare the map for use in SubwaySim 2 by configuring all required settings and validating the setup. → Prepare Map**
