Importing Switches

Imported switches are used when the Railtool cannot generate a special switch type reliably.

Most standard switches can be created directly with the Railtool. However, more complex constructions (for example DW, EKW, DKW, special double crossovers, or asymmetric real-world layouts) vary a lot between networks and often require manual modelling.

In those cases, the switch is built in a 3D program (usually Blender), exported as FBX, imported into SubwaySim 2, and finally wrapped into a Blueprint so the Railtool can use it like any other switch.

This page covers:

• When imported switches are needed
• Using already included imported switches from the SDK
• The full pipeline for creating your own imported switch:

modelling → paths → export → import → animations → Blueprint → Railtool connection

Use imported switches when:

• the Railtool does not support the geometry (e.g. DKW, EKW, DW, special crossings, double crossovers)
• your switch has a non-standard shape/radius/angle that cannot be generated cleanly
• you need an exact real-world design
• you need special frog/guard layouts or custom sleeper/gear parts

You do NOT need imported switches for:

• normal crossings (they have no moving parts)
• standard left/right turnouts supported by Railtool

Crossings (no moving parts) are generated by Railtool and do not need custom building.

The Modding SDK ships with a variety of imported switches that are used by the base game.

You can find them here:

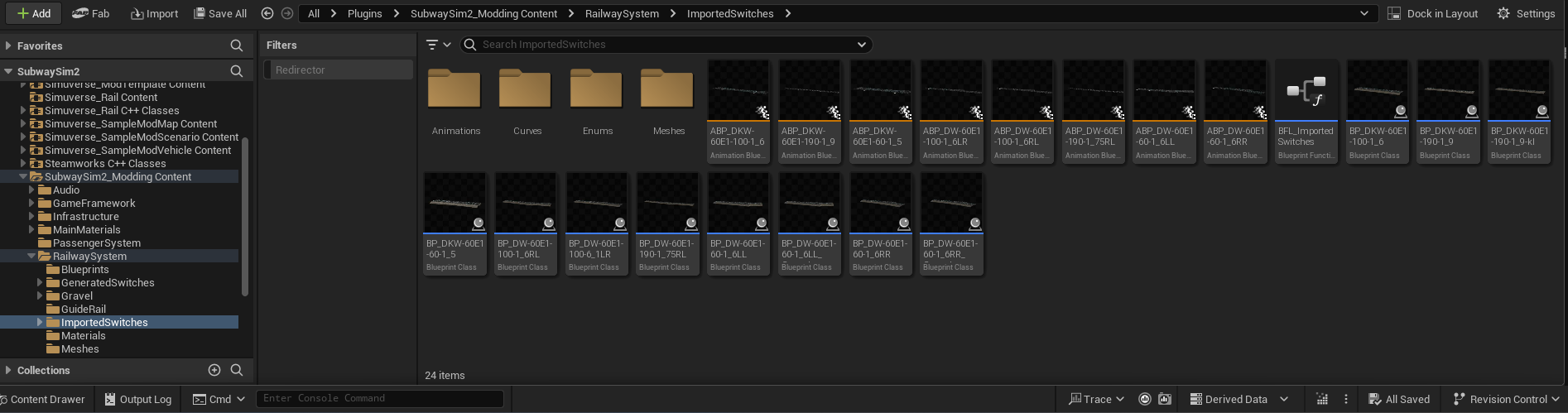

SubwaySim2_Modding / RailwaySystem / ImportedSwitches

Inside this folder, you will see many switch assets.

Important:

• Only use the BP_… Blueprints for placement in levels.
• The Blueprints contain the configuration needed for Railtool and animations.
• StaticMeshes / SkeletalMeshes alone are NOT enough.

1. Make sure you are in Selection Mode in the Unreal Editor

 (important: not in Railtool mode while placing the BP)

2. Drag the desired BP_… imported switch into your level.

3. You can freely move and rotate it like any normal actor.

4. Align it to your intended layout.

 (This is manual placement, so take your time.)

Once the switch is placed, it needs to be connected to the Railtool track network:

• Switch to the Railtool workflow:

→ Laying Tracks

• Use the Control Points of the imported switch
• Connect your Railtool track splines to those Control Points (same idea as normal Railtool elements)

After this step:

• the imported switch behaves like a normal track element
• AI routing and signaling can work, as long as the surrounding network is valid

If none of the provided switches fit your needs, you can create your own imported switch.

Typical reasons include:

• unique geometry
• special crossover layouts
• prototype or fictional designs
• real-world designs that differ from the base assets

The full workflow looks like this:

1) Planning & naming
2) Modelling rails + frogs + guards
3) Creating drivable paths (critical!)
4) Sleepers, clamps, gravel
5) UVs & materials
6) Rigging blades + throw bars
7) Animations (NLA)
8) Export FBX
9) Import into Unreal (SkeletalMesh, StaticMeshes, paths, animations)
10) Animation Blueprint (ABP)
11) Switch Blueprint (RTImportedSwitchActor)
12) Test in level + connect with Railtool

This is the same concept used by base game imported switches.

Quick translation list used in references and modelling:

We generally build everything in the 60E1 rail profile.

That means:

• your rail meshes match the prepared 60E1 assets in the SDK
• your dimensions, trims, and clearances align with existing track content

The blade rail is the moving part of the switch. The stock rail is the fixed rail the blade presses against.

Key details:

• The blade starts thin and gradually becomes thicker until it transitions into a near-normal rail profile.
• The stock rail also changes shape around the blade area.
• The blade sits slightly higher than the standard rail but must keep the correct track gauge.

This transition is critical:

• visually (looks correct)
• physically (wheels can pass)
• for flangeway clearance at frog and guards

The frog is where rails intersect and split.

It is usually the most complex part because:

• rail geometry intersects
• flangeway must remain correct
• wings and guard guidance must prevent derailment / clipping
• some switch types have double or triple frog variants

The throw bar and motor move the blades.

Important behavior:

• Blades do NOT start moving at exactly the same time
• One blade starts slightly earlier than the other (realistic behavior)
• Some switches can also use manual levers instead of motors

If you animate blade movement:

• include this offset in timing/curves
• make sure throw bar geometry doesn’t clip

Guard rails and guide rails keep wheels aligned over frogs.

• Guard rails prevent the wheelset from drifting sideways at the frog.
• Guide rails are used when geometry is tight or guard rails don’t fit.

When a guard rail does not fit cleanly:

• add a small guide rail piece
• look at previously made switches for style reference

Switches use several clamp types:

• normal rail clamps
• blade clamps
• guard clamps
• special clamps where space is too tight

Clamps often become the biggest performance cost if modelled fully. (We cover optimization later.)

Crossings are NOT switches. They have no moving parts. Railtool can generate them → no custom build required.

A standard switch (single turnout) can be generated by Railtool. No custom build needed in most cases.

DW is basically two switches extremely close together that intersect. These currently must be custom built because Railtool cannot reliably generate them.

EKW is a crossing with a switch integrated. Custom build required.

DKW is like EKW but allows switching between tracks in multiple directions. Even more complex → custom build required.

DKW has two typical constructions:

• blades outside the two frogs
• blades inside the frogs

Outside blades:

• more complex to build
• often allow higher speeds

Inside blades:

• simpler geometry
• often tighter constraints

Before modelling, decide:

• rail profile (we assume 60E1)
• radius (e.g. 100 m)
• angle ratio (e.g. 1:6)
• direction pattern (left/right sequence)

Example naming:

DW-60E1-100-6:1LR

Some softwares don’t like “:” so you may see:

DW-60E1-100-1_6LR

Keep the naming consistent across:

• Blender file collection names
• exported FBX names
• Unreal folders
• Blueprint names

We assume you are working inside a prepared file like:

60E1-Rail.blend

This file already contains prepared meshes and references. Follow its folder / collection structure:

• create a new Collection for your switch
• keep rails, sleepers, clamps, paths separated

First we set up our angle, example 1:6:

1) Place a single vertex in world origin
2) Extrude it 6 m along X-Axis
3) Extrude it 1 m along Y-Axis
4) Fill the 2 lonely verts → you now have a triangle

The edge that is ~6.08 m long will be called “c”.

Next we make a 100° circle and align it so that the bottom vertex sits in the origin. Recommended:

• a vertex count divisible by 4
• individual edge length ~0.6 m (as close as possible)

Example: 1024 verts.

Delete unnecessary verts (keep only the range you need).

Now:

• extrude the triangle edge “c”
• move the circle along X until the circle is tangent to “c”

How to align precisely (recommended):

• enable snapping (active element)
• select a vertex, then select all verts
• edge snap it to “c”
• if still crossing the edge, select another vertex

This is faster and more precise than eyeballing.

Now you have the left curve more or less done.

You still need a right curve:

• duplicate the first curve
• move it so that the very start sits in world origin
• rotate by 180° / mirror along X

Now add a straight edge, convert them to curves. At this point your switch layout curves should look correct.

Paths define where trains can drive. They MUST be correct, otherwise routing will fail.

Workflow:

• duplicate your curves
• convert to meshes
• cut them short a bit
• make sure they all start at the same point (if your layout requires it)
• extrude the edges 0.1 m up so they are easier visible

Important rule:

• Wherever paths intersect, they must share IDENTICAL vertex positions.
• The paths need the exact same verts wherever they intersect.

Naming recommendation:

• PathLeft
• PathRight
• PathStraight

(and more if needed)

These paths will later be referenced inside the Switch Blueprint SwitchConfigurations.

Rails:

• take the 60E1Double mesh
• duplicate it
• add an Array modifier (enable “Merge”)
• add a Curve modifier and select one of your curves
• repeat for all required rail segments

Flangeway / wheel space:

• do the same with the “Abstand” mesh (shows the wheel clearance / flangeway)

After that you should have rails + clearance along the curves.

Next, sleepers:

• take an existing sleeper mesh (often WoodenSleeper2.6)
• add a constant offset array of 0.6 m (if not already existing)
• add a curve modifier and put it onto the curves

After lengthening and vertex merging you should have sleepers aligned.

At first the frog area will look wrong because rails intersect.

Step 1: Cut out the parts where the flangeway and rail intersect.

Step 2: Model the frog:

• lengthen rails to the intersecting points
• use references (real photos or existing switches)
• don’t forget the wings
• keep flangeway clearance correct

Frogs will always look a bit weird in Blender – don’t worry. Focus on clearance and correct geometry.

Blades:

• take BladeRailDouble mesh
• put it on the curves you need
• rotate if needed (thick part should be as close to center as possible)
• duplicate the middle piece and move both the second middle and thin end piece to where the blade starts intersecting with the rail
• move the thin end to where the blade ends
• delete the face from the “wrong” blade

Now:

• select each segment and bridge edges (linear)
• add as many cuts as needed so each segment is about 0.6 m long
• delete unneeded faces
• sharpen the thin end edges
• apply the curve modifier

Stock rail:

• duplicate StockRailDouble
• add curve modifier
• align it to the corresponding rail

Repeat for all blade/stock sections.

Goal:

• blade sits correctly against stock rail
• gauge stays correct
• no clearance issues

Guard rail:

• duplicate GuardRailDouble mesh
• put it on the required curve segments
• trim it if needed

If a guard does not fit:

• add a small metal piece called guide rail (“Leitschiene”)
• look at previously made switches for reference

Hollow sleepers:

• take HollowSleeper mesh
• move it to the end of your blades in between two sleepers
• make sure the steel part doesn’t intersect → adjust position if needed

Throw bar:

• take ThrowBar and ThrowBarNuts meshes
• move them to the same point and align them with the blade ends

Make sure:

• flangeway clearance is OK in both blade positions
• throw bar doesn’t clip the hollow sleeper

Clamps are the most tedious part.

Helper setup:

• add an edge loop lengthwise through every sleeper (can be removed later)
• add an edge loop lengthwise through all rails (except blades)

Placement workflow:

1) take RailClamp mesh
2) edge snap it to the middle of the first sleeper and middle of the rail
3) duplicate it along X by 0.6 m (sleeper spacing)
4) press Shift+R to repeat until you cover the full length
5) move clamps to align with the curve of the rail
6) rotate all clamps individually to match the rail direction

Why not instances/arrays:

• you may need to adjust clamps individually
• pivots must rotate properly per clamp

Blade clamps:

• use ClampK_BladeBUILD on the corresponding stock rail

Guard clamps:

• use ClampK_GuardBUILD on the corresponding guard rail

Special clamps:

• when clamps clip, separate them and build a “special clamp”

Clamps are a lot of geometry. You have two approaches:

Correct way (best performance, more work):

• separate special clamps, blade clamps and guard clamps from the rest
• add sockets for clamp positions
• write down single/double clamp info
• place clamps via Instanced Meshes in Engine

This is easier for symmetrical switches (especially DKW quarters).

Lazy way (often good enough to start):

• export clamps as a separate StaticMesh
• apply strong LODs to reduce performance impact

Recommendation:

• start with the lazy way
• optimize later if performance becomes a problem

Take a gravel mesh (GravelOEBB or GravelSubway depending on usage) and apply curve modifiers (often multiple curve passes).

Then:

• apply modifiers
• merge parts together (avoid overlaps / Z-fighting)
• make sure ends connect correctly to adjacent gravel

UV important:

• gravel must match texel density of normal gravel mesh
• project from view (top-down) and apply same texel density

UVs are quite simple because we use a tileable trimsheet: RailTileSet.

Workflow:

• select shiny metal parts → cube project → texel density 5.12 px/cm on a 1k texture
• move those UVs into the shiny section of the trimsheet (upper part)
• rust parts → second section
• repeat for wood/concrete parts

Consistency matters:

• same texel density as base assets avoids “patchy” look in-game

Imported switches need blade movement.

We use an Armature.

1) Create your root bone:

 Name: **Rail**

2) Assign a vertex group called “Rail” to everything that is static (non-moving):

• rails (excluding blades)
• frogs
• guards
• sleepers
• gravel
• clamps (if included here)

Fast workflow:

• merge the static meshes temporarily
• select all faces
• CTRL+G → assign to vertex group “Rail”

3) For each blade:

• place your first bone at the start of the blade (thick end)
• move its end to the thin end
• subdivide the bone twice → 4 bones per blade
• align the bones to the curved blade centerline
• bones should sit in the middle of the blade

Naming convention:

Blade(direction from → direction to)_(left/right blade)(bone index starting at thick end)

Examples:

• BladeLR_L1
• BladeLR_L2
• BladeRL_R3

Throw bars:

• vertex groups named after their attached blade
• include the final number accordingly

Skinning:

• parent blades to the armature with Automatic Weights
• then verify each bone in Pose Mode (fix if something didn’t skin correctly)

Example: A DW usually has 2 animations:

• BladeSwitch1 (SW1)
• BladeSwitch2 (SW2)

Typical timing example:

• frame 1: one blade side is “closed”
• frame 20: opposite blade starts moving (slightly later)
• frame 80: one side returns to neutral
• frame 100: the other side reaches the final switched position

Example rotation values (will vary):

• R1: 1°
• R2: 0.5°

Important:

• blades don’t move at the same time (offset timing)
• ensure flangeways can pass without clipping
• ensure throw bars do not intersect hollow sleepers

Graph Editor:

• set curves to linear

Output requirement:

• both animations must be NLA strips
• naming must match what you will reference in Unreal (BladeSwitch1 / BladeSwitch2)

Export groups (recommended):

• SkeletalMesh FBX (armature + blades + any skinned parts)
• Animations FBX (or included depending on your workflow)
• StaticMeshes FBX (sleepers, gravel, clamps if separate)
• Paths FBX (all paths can be in one FBX)

Folder structure:

• follow the SDK conventions (keep it clean and consistent)

Paths requirement:

• names must be clean and unique (PathLeft, PathRight, etc.)
• paths must share vertices at intersections

Import categories:

Import the SkeletalMesh like a vehicle:

• place it into your plugin folder structure (ImportedSwitches / YourSwitchName / …)
• import animations into an Animations subfolder

Verify:

• skeleton is correct
• animations play correctly on preview

StaticMeshes:

• import normally

Paths:

• can be imported from one FBX
• IMPORTANT: disable “Combine Meshes”
• each path must become its own StaticMesh asset
• verify that PathLeft/PathRight/PathStraight exist as separate meshes

Create an Animation Blueprint for the switch.

Rules:

• place it with other imported switch ABPs (same structure)
• Parent Class must be: Lua Anim Instance
• follow naming conventions

Workflow (recommended):

• copy/paste an existing imported switch ABP as a base
• make SW1 / SW2 (or your blade groups) variables in the ABP
• assign your Anim Sequences to those variables
• update “Layered Blend per Bone” to your blade bone names

(triple check for typos and correct order)

If blades don’t move:

• wrong bone names
• wrong skeleton
• animations not assigned
• NLA strips not exported correctly

This Blueprint is what you actually place in the world and what Railtool integrates with.

It combines:

• SkeletalMesh component
• StaticMesh components (optional: gravel/clamps/sleepers if separate)
• Animation Blueprint
• RailTool2 SwitchConfigurations (critical)

1) Create Blueprint Class 2) Parent Class: RTImportedSwitchActor 3) Name it coherently, e.g.:

 BP_IS_DW_60E1_100_1_6LR

In the Blueprint:

• assign your SkeletalMesh
• set Animation Mode to use your Animation Blueprint
• assign your ABP

Optional:

• add StaticMesh components for clamps/gravel/sleepers if those were exported separately

Open the Blueprint Details and locate:

RailTool2 → SwitchConfigurations

Each SwitchConfiguration defines one valid route through the switch.

Each configuration links:

• a Path mesh (PathLeft / PathRight / PathStraight / …)
• animation state values for SW1 / SW2 / …

Example idea:

• Route “Left”:

Path = PathLeft

    SW1 = 1 (end)
    SW2 = 0
* Route “Right”:
    Path = PathRight
    SW1 = 0
    SW2 = 2

Notes:

• You can cycle through SwitchConfigurations (index 0, 1, 2, …) for debugging.
• If you can’t see changes, check the ABP (bone names, variables, animation assignment).

Some imported switches need optional toggles:

• hide gravel (bridge / slab track scenarios)
• swap sleepers (wood vs concrete)

Typical setup:

• exposed variables
• Set Visibility calls in Construction Script

If your switch uses motor meshes:

• determine motor placement in Blender
• copy relative location/rotation into the Blueprint
• optionally use an enum for motor positions (like base switches)

1) Make sure you are in Selection Mode 2) Drag your BP_… imported switch into the level 3) Move/rotate it into position 4) Connect it with Railtool ControlPoints:

 → [[manual:subwaysim:map_construction:laying_tracks|Laying Tracks]]

Validate:

• drive each route (player and/or AI) over all paths
• check for clipping at frogs and blade ends
• verify blade animations match selected route
• verify signals / route setting behave as expected on connected tracks

Example 1:6:

1/6 = 0.1666...
atan(0.1666...) = 9.462322208...

Rounded to 4 decimals:

9.4623°

It can be useful to maintain a list of known angles to avoid repeating the math.

• Paths do not share identical vertices at intersections
• Wrong pivot/orientation → switch doesn’t align with adjacent tracks
• ABP bone names mismatch → blades never move
• SwitchConfigurations missing/incorrect → trains take wrong routes
• Frog flangeway clearance wrong → clipping / derail-looking behavior
• Clamp geometry too heavy → performance issues (use LODs or instancing)
• Gravel overlaps adjacent ground → add a toggle (visibility) or adjust mesh

Once your imported switch is placed and connected successfully, continue building your track network as usual:

• Laying Tracks
